Instalace s Raspberry Noobs je hračka! Potřebujete pouze RaspberryZeroW a prázdnou kartu SD.
Krok 1: Instalační program Noobs
Stáhněte si instalační program Noobs ze stránek https://www.raspberrypi.org/downloads/noobs/.
Krok 2: Karta SD

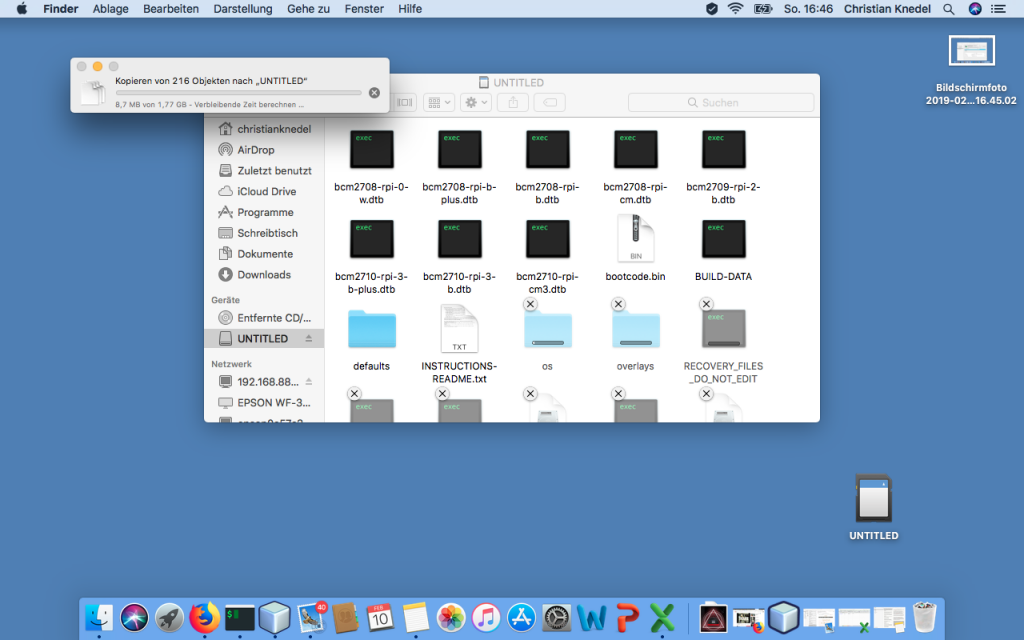

Rozbalte tento archiv zip na prázdnou kartu SD.

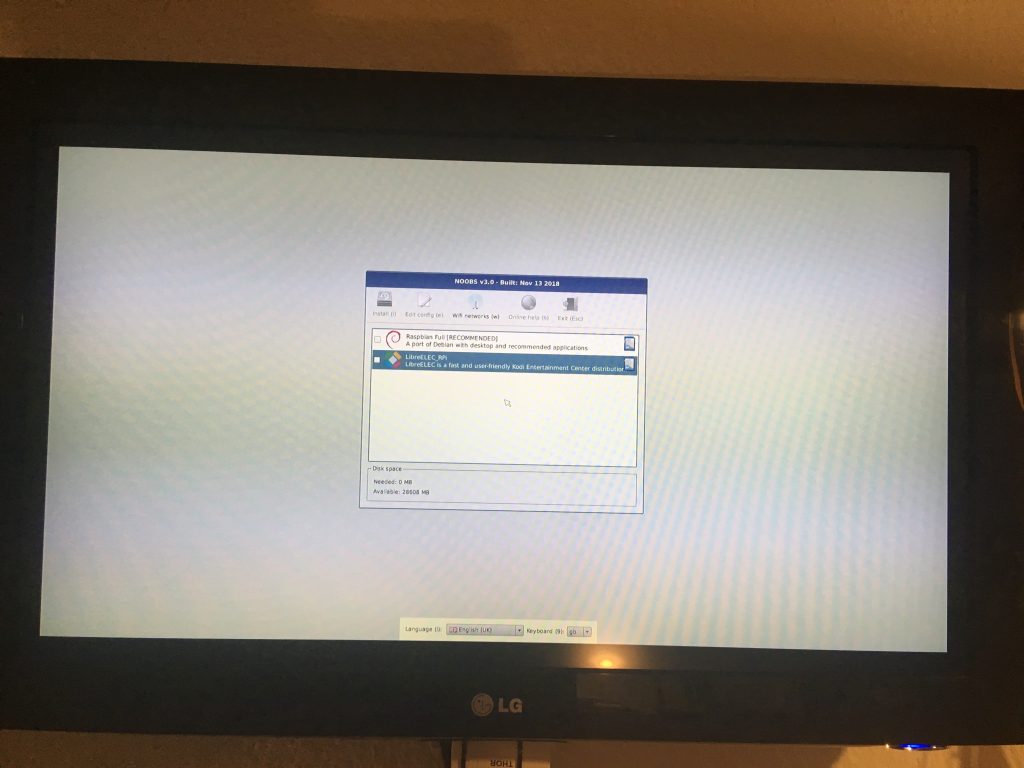

Hotovo! Nyní můžete připojit RaspberryPiZero k televizoru. Poté se zobrazí nabídka instalace.
Pokud máte na kartě NoobsLite, musíte nejprve navázat připojení k síti WLAN. Poté vyberte “Rasbian Lite” a klikněte na “Instalovat”. Rasbian Lite je serverová verze bez pracovní plochy. Po zavedení systému je třeba aktualizovat správu balíčků.
$ sudo apt-get update
$ sudo apt-get install -y nodm matchbox-window-manager uzbl xinit vim
$ sudo adduser dashboard
$ sudo su dashboard
$ sudo vim ~/.xsession
#!/bin/bash
xset s off
xset s noblank
xset -dpms
while true; do
uzbl -u http://git-lab-ip/host/ -c /home/dashboard/uzbl.conf & exec matchbox-window-manager -use_titlebar no
done
Poté stiskněte klávesu “Esc” pro změnu příkazového režimu a poté “:wq” pro “write” a “quit”. Kromě toho tento skript vyžaduje následující práva:
$ chmod 755 ~/.xsession
set config_home = /home/dashboard
set socket_dir=/tmp
set geometry=maximized
set show_status=0
set on_event = request ON_EVENT
@on_event LOAD_FINISH script @config_home/gitlab.js
Poločas! Jste téměř hotovi. Nyní potřebujete Javascript, pomocí kterého můžete simulovat chování uživatele. Je důležité, abyste si vytvořili samostatného uživatele Gitlabu. Tento uživatel může být v projektech spravován jako “reportér”.
var gitlabUrl = 'http://git-lab-url:port';
var gitlabUser = 'userName';
var gitlabPassword = 'userPasswort';
/*--------------------------Timer--------------------------*/
var Timer = function(intervallInMsec)
{
this.caller = new Array();
this.intervall = window.setInterval(
this.call.bind(this),
intervallInMsec
);
};
Timer.prototype.append = function(callFunction)
{
this.caller.push(callFunction);
};
Timer.prototype.remove = function(callFunction)
{
var index = this.caller.indexOf(callFunction);
if (index > -1)
{
this.caller.splice(index, 1);
}
};
Timer.prototype.call = function()
{
for(
var callerIndex = 0, callerLenght = this.caller.length;
callerIndex < callerLenght;
callerIndex++
) {
this.caller[ callerIndex ].call();
}
};
/* login verhalten */
var timer = new Timer(1000);
timer.append(
function()
{
if (jQuery('#user_login').length > 0)
{
jQuery('#user_login').val(gitlabUser);
jQuery('#user_password').val(gitlabPassword);
jQuery('.btn-save').click();
}
}
);
/* wallboard aufrufen */
timer.append(
function()
{
if (jQuery('.js-projects-list-holder').length > 0)
{
window.location.href = window.gitlabUrl + '/dashboard/issues?state=opened&utf8=✓&assignee_id=0';
}
}
);
/* reload verhalten */
timer.append(
function()
{
if (jQuery('.issues-filters').length > 0)
{
window.location.href = window.gitlabUrl + '/dashboard/issues?state=opened&utf8=✓&assignee_id=0';
}
}
);
Nyní se můžete odhlásit. Změňte prosím nastavení DisplayManager v položce “/etc/default/nodm”. Zde musíte změnit “NODM_USER” na “dashboard” a “NODM_ENABLED” na “true”.
# nodm configuration
# Set NODM_ENABLED to something different than 'false' to enable nodm
NODM_ENABLED=true
# User to autologin for
NODM_USER=dashboard
# First vt to try when looking for free VTs
NODM_FIRST_VT=7
# X session
NODM_XSESSION=/etc/X11/Xsession
# Options for nodm itself
NODM_OPTIONS=
# Options for the X server.
#
# Format: [/usr/bin/<Xserver>] [:<disp>] <Xserver-options>
#
# The Xserver executable and the display name can be omitted, but should
# be placed in front, if nodm's defaults shall be overridden.
NODM_X_OPTIONS='-nolisten tcp'
# If an X session will run for less than this time in seconds, nodm will wait an
# increasing bit of time before restarting the session
NODM_MIN_SESSION_TIME=60
# Timeout (in seconds) to wait for X to be ready to accept connections. If X is
# not ready before this timeout, it is killed and restarted.
NODM_X_TIMEOUT=300

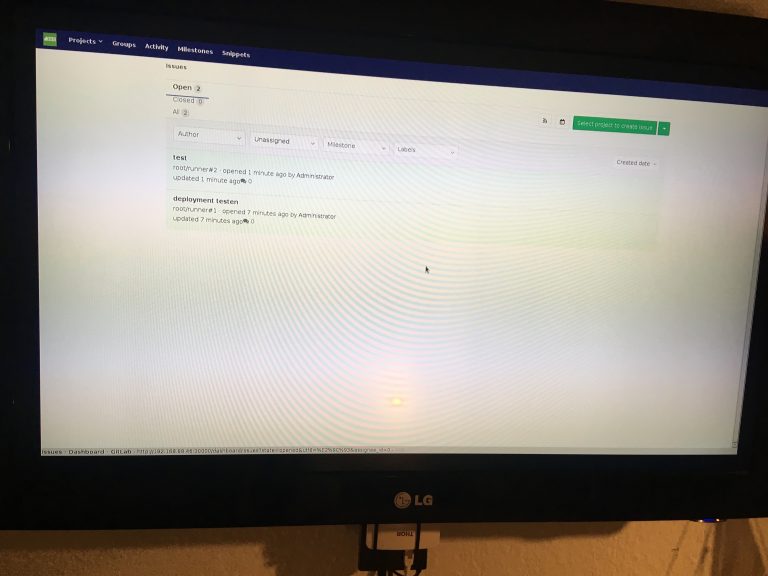

Pokud nyní restartujete počítač příkazem “sudo reboot”, zobrazí se následující ovládací panel:
