Grafana ist eine plattformübergreifende Open-Source-Anwendung zur grafischen Darstellung von Daten aus verschiedenen Datenquellen wie z. B. InfluxDB, MySQL, PostgreSQL oder Prometheus. Heute zeige ich, wie man einen Grafana-Dienst auf der Synology-Diskstation installiert.

Schritt 1: Synology vorbereiten

Als erstes muss der SSH-Login auf der Diskstation aktiviert werden. Dazu geht man in die „Systemsteuerung“ > „Terminal & SNMP“ und aktiviert dort die „SSH-Dienst aktivieren“-Einstellung.


Danach kann man sich via „SSH„, den angegebenen Port und den Administrator-Password anmelden (Windows-Nutzer nehmen Putty oder WinSCP).


Ich logge mich via Terminal, winSCP oder Putty ein und lasse diese Konsole für später offen.

Schritt 2: Grafana-Ordner erstellen

Ich erstelle ein neues Verzeichnis namens „grafana“ im Docker-Verzeichnis.


Mit dem Befehl “cd” suche ich das Grafana-Verzeichnis auf:

x
–
+
Terminal

$ cd /volume1/docker/grafana/

Dann erstelle ich dort eine „grafana.yml“-Datei im Grafana-Verzeichnis mit diesem Inhalt:

version: "2"
services:
  grafana:
    image: grafana/grafana
    container_name: grafana_server_grafana
    restart: always
    ports:
      - 3000:3000
    networks:
      - grafana
    environment:
      - GF_SERVER_CERT_FILE=/etc/ssl/server.crt
      - GF_SERVER_CERT_KEY=/etc/ssl/server.key
      - GF_SERVER_PROTOCOL=https
      - GF_SERVER_HTTP_PORT=3000
    volumes:
      - ./grafana:/var/lib/grafana
      - ./ssl:/etc/ssl

  influxdb:
    image: influxdb
    container_name: grafana_server_influxdb
    restart: always
    ports:
      - 8086:8086
    networks:
      - grafana
    volumes:
      - ./influxdb:/var/lib/influxdb
      - ./ssl:/etc/ssl
    environment:
      - INFLUXDB_DB=telegraf
      - INFLUXDB_USER=telegraf
      - INFLUXDB_USER_PASSWORD=influxdb-password
      - INFLUXDB_ADMIN_ENABLED=true
      - INFLUXDB_ADMIN_USER=admin
      - INFLUXDB_ADMIN_PASSWORD=influxdb-password
      - INFLUXDB_HTTP_HTTPS_ENABLED=true
      - INFLUXDB_HTTP_HTTPS_CERTIFICATE=/etc/ssl/server.crt
      - INFLUXDB_HTTP_HTTPS_PRIVATE_KEY=/etc/ssl/server.key
      - INFLUXDB_HTTP_AUTH_ENABLED=true

  telegraf:
    image: telegraf
    container_name: grafana_server_telegraf
    restart: always
    environment:
      HOST_PROC: /rootfs/proc
      HOST_SYS: /rootfs/sys
      HOST_ETC: /rootfs/etc
    volumes:
     - ./telegraf.conf:/etc/telegraf/telegraf.conf:ro
     - /var/run/docker.sock:/var/run/docker.sock:ro
     - /sys:/rootfs/sys:ro
     - /proc:/rootfs/proc:ro
     - /etc:/rootfs/etc:ro

networks:
  grafana:

Ich erstelle noch zwei Unterordner für die Daten:

x
–
+
Terminal

$ mkdir grafana
$ mkdir influxdb
$ chown -R 472:472 grafana

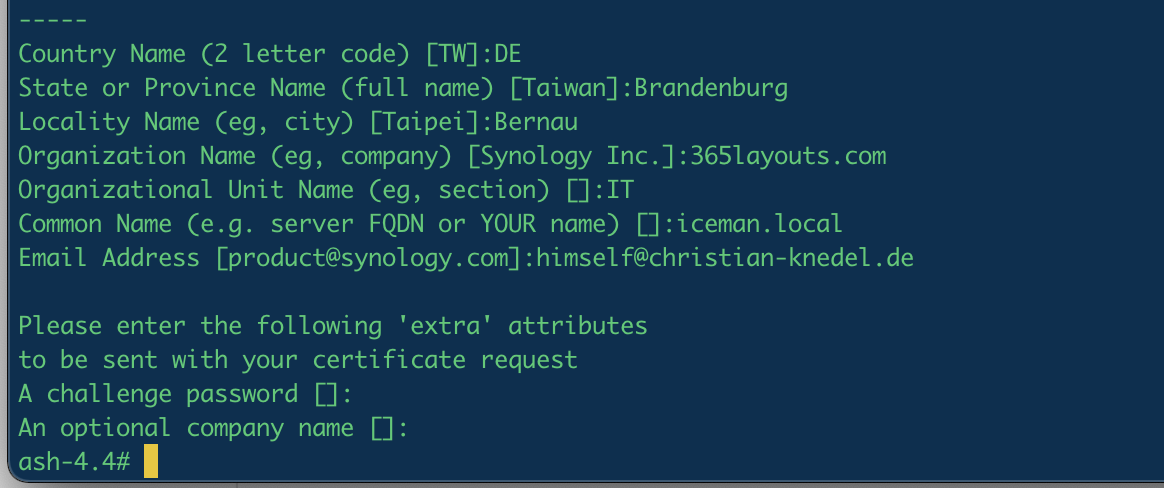

Da ich für Grafana und die dazugehörigen Schnittstelle SSL nutzen will, muss noch ein Zertifikat erstellt werden:

x
–
+
Terminal

$ mkdir ssl
$ openssl genrsa -aes256 -passout pass:your-password -out ssl/server.pass.key 4096
$ openssl rsa -passin pass:your-password -in ssl/server.pass.key -out ssl/server.key
$ openssl req -new -key ssl/server.key -out ssl/server.csr
$ rm ssl/server.pass.key
$ openssl x509 -req -sha256 -days 365 -in ssl/server.csr -signkey ssl/server.key -out ssl/server.crt

Siehe:

Als Letztes erstelle ich eine “telegraf.conf”-Datei mit diesem Inhalt:

[global_tags]

[agent]
  interval = "60s"
  round_interval = true
  metric_batch_size = 1000
  metric_buffer_limit = 10000
  collection_jitter = "0s"
  flush_interval = "10s"
  flush_jitter = "0s"
  precision = ""
  hostname = "Synology DS918"
  omit_hostname = false

[[outputs.influxdb]]
urls = ["https://192.168.1.46:8086"] #synology ip
database = "telegraf"
timeout = "5s"
username = "telegraf"
password = "influxdb-password"
insecure_skip_verify = true

[[inputs.ping]]
  interval = "5s"
  urls = ["google.com", "amazon.com", "github.com"]
  count = 4
  ping_interval = 1.0
  timeout = 2.0

[[inputs.cpu]]
  percpu = true
  totalcpu = true
  collect_cpu_time = false
  report_active = false
  fielddrop = ["time_*"]

[[inputs.disk]]
  ignore_fs = ["tmpfs", "devtmpfs", "devfs", "iso9660", "overlay", "aufs", "squashfs"]

[[inputs.disk]]
  ignore_fs = ["tmpfs", "devtmpfs", "none", "iso9660", "overlay", "aufs", "squashfs"]

[[inputs.diskio]]

[[inputs.kernel]]

[[inputs.mem]]

[[inputs.swap]]

[[inputs.net]]
  fieldpass = [ "bytes*" ]

[[inputs.netstat]]

[[inputs.processes]]

[[inputs.system]]

[[inputs.net]]
  fieldpass = [ "bytes*" ]

[[inputs.docker]]
  endpoint = "unix:///var/run/docker.sock"

  gather_services = false

  container_name_include = []
  container_name_exclude = []

  timeout = "5s"

  docker_label_include = []
  docker_label_exclude = []

  perdevice = true

  total = false



##
## Synology
##
 [[inputs.snmp]]
   # List of agents to poll
   agents = [ "192.168.1.46" ] # required - enter the IP address of your Synology device

   # Polling interval
   interval = "60s"

   # Timeout for each SNMP query.
   timeout = "10s"

   # Number of retries to attempt within timeout.
   retries = 3

   # SNMP version, UAP only supports v1
   version = 2

   # SNMP community string.
   community = "public"

   # The GETBULK max-repetitions parameter
   max_repetitions = 30

   # Measurement name
   name = "snmp.SYNO"

   #  System name (hostname)
   [[inputs.snmp.field]]
     is_tag = true
     name = "sysName"
     oid = "RFC1213-MIB::sysName.0"
   #  System vendor OID
   [[inputs.snmp.field]]
     name = "sysObjectID"
     oid = "RFC1213-MIB::sysObjectID.0"
   #  System description
   [[inputs.snmp.field]]
     name = "sysDescr"
     oid = "RFC1213-MIB::sysDescr.0"
   #  System contact
   [[inputs.snmp.field]]
     name = "sysContact"
     oid = "RFC1213-MIB::sysContact.0"
   #  System location
   [[inputs.snmp.field]]
     name = "sysLocation"
     oid = "RFC1213-MIB::sysLocation.0"
   #  System uptime
   [[inputs.snmp.field]]
     name = "sysUpTime"
     oid = "RFC1213-MIB::sysUpTime.0"
   # Inet interface
   [[inputs.snmp.table]]
     oid = "IF-MIB::ifTable"
     [[inputs.snmp.table.field]]
       is_tag = true
     oid = "IF-MIB::ifDescr"
   #Syno disk
   [[inputs.snmp.table]]
     oid = "SYNOLOGY-DISK-MIB::diskTable"
     [[inputs.snmp.table.field]]
       is_tag = true
     oid = "SYNOLOGY-DISK-MIB::diskID"
   #Syno raid
   [[inputs.snmp.table]]
     oid = "SYNOLOGY-RAID-MIB::raidTable"
     [[inputs.snmp.table.field]]
       is_tag = true
     oid = "SYNOLOGY-RAID-MIB::raidName"
   #Syno load
   [[inputs.snmp.table]]
     oid = "UCD-SNMP-MIB::laTable"
     [[inputs.snmp.table.field]]
       is_tag = true
     oid = "UCD-SNMP-MIB::laNames"
   #  System memTotalSwap
   [[inputs.snmp.field]]
     name = "memTotalSwap"
     oid = "UCD-SNMP-MIB::memTotalSwap.0"
   #  System memAvailSwap
   [[inputs.snmp.field]]
     name = "memAvailSwap"
     oid = "UCD-SNMP-MIB::memAvailSwap.0"
   #  System memTotalReal
   [[inputs.snmp.field]]
     name = "memTotalReal"
     oid = "UCD-SNMP-MIB::memTotalReal.0"
   #  System memAvailReal
   [[inputs.snmp.field]]
     name = "memAvailReal"
     oid = "UCD-SNMP-MIB::memAvailReal.0"
   #  System memTotalFree
   [[inputs.snmp.field]]
     name = "memTotalFree"
     oid = "UCD-SNMP-MIB::memTotalFree.0"
   #  System Status
   [[inputs.snmp.field]]
     name = "systemStatus"
     oid = "SYNOLOGY-SYSTEM-MIB::systemStatus.0"
   #  System temperature
   [[inputs.snmp.field]]
     name = "temperature"
     oid = "SYNOLOGY-SYSTEM-MIB::temperature.0"
   #  System powerStatus
   [[inputs.snmp.field]]
     name = "powerStatus"
     oid = "SYNOLOGY-SYSTEM-MIB::powerStatus.0"
   #  System systemFanStatus
   [[inputs.snmp.field]]
     name = "systemFanStatus"
     oid = "SYNOLOGY-SYSTEM-MIB::systemFanStatus.0"
   #  System cpuFanStatus
   [[inputs.snmp.field]]
     name = "cpuFanStatus"
     oid = "SYNOLOGY-SYSTEM-MIB::cpuFanStatus.0"
   #  System modelName
   [[inputs.snmp.field]]
     name = "modelName"
     oid = "SYNOLOGY-SYSTEM-MIB::modelName.0"
   #  System serialNumber
   [[inputs.snmp.field]]
     name = "serialNumber"
     oid = "SYNOLOGY-SYSTEM-MIB::serialNumber.0"
   #  System version
   [[inputs.snmp.field]]
     name = "version"
     oid = "SYNOLOGY-SYSTEM-MIB::version.0"
   #  System upgradeAvailable
   [[inputs.snmp.field]]
     name = "upgradeAvailable"
     oid = "SYNOLOGY-SYSTEM-MIB::upgradeAvailable.0"
   # System volume
   [[inputs.snmp.table]]
     oid = "HOST-RESOURCES-MIB::hrStorageTable"
   [[inputs.snmp.table.field]]
       is_tag = true
     oid = "HOST-RESOURCES-MIB::hrStorageDescr"
   # System ssCpuUser
   [[inputs.snmp.field]]
     name = "ssCpuUser"
     oid = ".1.3.6.1.4.1.2021.11.9.0"
   # System ssCpuSystem
   [[inputs.snmp.field]]
     name = "ssCpuSystem"
     oid = ".1.3.6.1.4.1.2021.11.10.0"
   # System ssCpuIdle
   [[inputs.snmp.field]]
     name = "ssCpuIdle"
     oid = ".1.3.6.1.4.1.2021.11.11.0"
   # Service users CIFS
   [[inputs.snmp.table.field]]
     name = "usersCIFS"
     oid = "SYNOLOGY-SERVICES-MIB::serviceUsers"
     oid_index_suffix = "1"
   # Service users AFP
   [[inputs.snmp.table.field]]
     name = "usersAFP"
     oid = "SYNOLOGY-SERVICES-MIB::serviceUsers"
     oid_index_suffix = "2"
   # Service users NFS
   [[inputs.snmp.table.field]]
     name = "usersNFS"
     oid = "SYNOLOGY-SERVICES-MIB::serviceUsers"
     oid_index_suffix = "3"
   # Service users FTP
   [[inputs.snmp.table.field]]
     name = "usersFTP"
     oid = "SYNOLOGY-SERVICES-MIB::serviceUsers"
     oid_index_suffix = "4"
   # Service users SFTP
   [[inputs.snmp.table.field]]
     name = "usersSFTP"
     oid = "SYNOLOGY-SERVICES-MIB::serviceUsers"
     oid_index_suffix = "5"
   # Service users HTTP
   [[inputs.snmp.table.field]]
     name = "usersHTTP"
     oid = "SYNOLOGY-SERVICES-MIB::serviceUsers"
     oid_index_suffix = "6"
   # Service users TELNET
   [[inputs.snmp.table.field]]
     name = "usersTELNET"
     oid = "SYNOLOGY-SERVICES-MIB::serviceUsers"
     oid_index_suffix = "7"
   # Service users SSH
   [[inputs.snmp.table.field]]
     name = "usersSSH"
     oid = "SYNOLOGY-SERVICES-MIB::serviceUsers"
     oid_index_suffix = "8"
   # Service users OTHER
   [[inputs.snmp.table.field]]
     name = "usersOTHER"
     oid = "SYNOLOGY-SERVICES-MIB::serviceUsers"
     oid_index_suffix = "9"
   # UPS Status
   [[inputs.snmp.table.field]]
     name = "upsStatus"
     oid = "SYNOLOGY-UPS-MIB::upsInfoStatus"
   # UPS Load
   [[inputs.snmp.table.field]]
     name = "upsLoad"
     oid = "SYNOLOGY-UPS-MIB::upsInfoLoadValue"
   # UPS Battery Charge
   [[inputs.snmp.table.field]]
     name = "upsCharge"
     oid = "SYNOLOGY-UPS-MIB::upsBatteryChargeValue"
   # UPS Battery Charge Warning
   [[inputs.snmp.table.field]]
     name = "upsWarning"
     oid = "SYNOLOGY-UPS-MIB::upsBatteryChargeWarning"

[[inputs.docker]]
  endpoint = "unix:///var/run/docker.sock"

  gather_services = false

  container_name_include = []
  container_name_exclude = []

  timeout = "5s"

  docker_label_include = []
  docker_label_exclude = []

  perdevice = true

  total = false

Nun starte den Grafana-Server mit diesem Compose-Aufruf:

x
–
+
Terminal

$ sudo docker-compose -f grafana.yml up

Schritt 3: Konfiguration

Nun kann ich den Server aufrufen, die Datenbank konfigurieren, Dashboard erstellen und weitere Messdaten anschliessen.
