Інсталяція з Raspberry Noobs - це дитяча гра! Все, що вам потрібно - це RaspberryZeroW і чиста SD-карта.
Крок 1: Інсталятор Noobs
Завантажте інсталятор Noobs з сайту https://www.raspberrypi.org/downloads/noobs/.
Крок 2: SD-карта

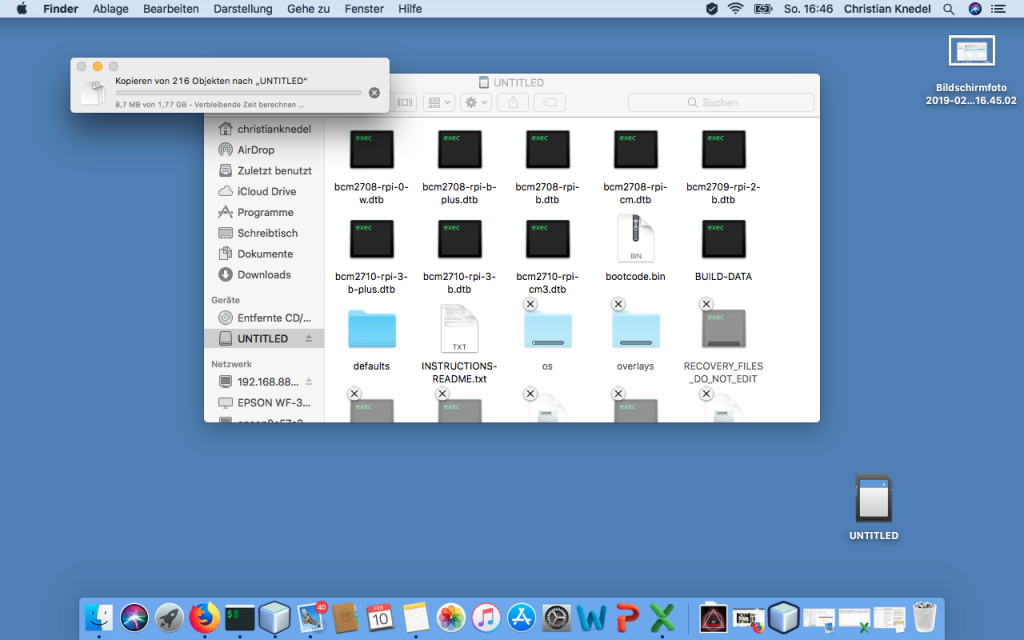

Розпакуйте цей zip-архів на порожню SD-карту.

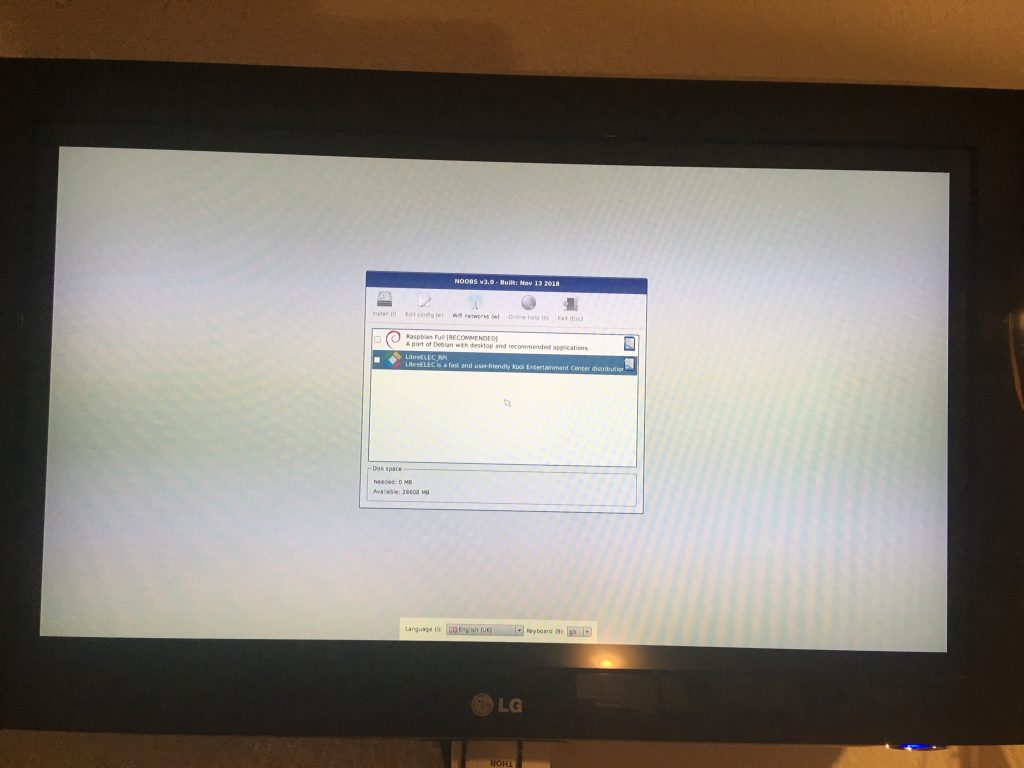

Готово! Тепер ви можете підключити RaspberryPiZero до телевізора. Після цього ви побачите меню інсталяції.
Якщо у вас є NoobsLite на картці, спочатку необхідно встановити з’єднання з бездротовою локальною мережею (WLAN). Потім виберіть “Rasbian Lite” і натисніть на кнопку “Встановити”. Rasbian Lite - серверна версія без робочого столу. Після завантаження необхідно оновити управління пакетами.
$ sudo apt-get update
$ sudo apt-get install -y nodm matchbox-window-manager uzbl xinit vim
$ sudo adduser dashboard
$ sudo su dashboard
$ sudo vim ~/.xsession
#!/bin/bash
xset s off
xset s noblank
xset -dpms
while true; do
uzbl -u http://git-lab-ip/host/ -c /home/dashboard/uzbl.conf & exec matchbox-window-manager -use_titlebar no
done
Потім натиснути клавішу “Esc” для зміни командного режиму, а потім “:wq” для “write” і “quit”. Крім того, для роботи цього скрипта потрібні наступні права:
$ chmod 755 ~/.xsession
set config_home = /home/dashboard
set socket_dir=/tmp
set geometry=maximized
set show_status=0
set on_event = request ON_EVENT
@on_event LOAD_FINISH script @config_home/gitlab.js
Перерва! Ви майже закінчили. Тепер вам потрібен Javascript, за допомогою якого можна імітувати поведінку користувача. Важливо, щоб ви створили окремого користувача Gitlab. Цим користувачем можна керувати як “репортером” у проектах.
var gitlabUrl = 'http://git-lab-url:port';
var gitlabUser = 'userName';
var gitlabPassword = 'userPasswort';
/*--------------------------Timer--------------------------*/
var Timer = function(intervallInMsec)
{
this.caller = new Array();
this.intervall = window.setInterval(
this.call.bind(this),
intervallInMsec
);
};
Timer.prototype.append = function(callFunction)
{
this.caller.push(callFunction);
};
Timer.prototype.remove = function(callFunction)
{
var index = this.caller.indexOf(callFunction);
if (index > -1)
{
this.caller.splice(index, 1);
}
};
Timer.prototype.call = function()
{
for(
var callerIndex = 0, callerLenght = this.caller.length;
callerIndex < callerLenght;
callerIndex++
) {
this.caller[ callerIndex ].call();
}
};
/* login verhalten */
var timer = new Timer(1000);
timer.append(
function()
{
if (jQuery('#user_login').length > 0)
{
jQuery('#user_login').val(gitlabUser);
jQuery('#user_password').val(gitlabPassword);
jQuery('.btn-save').click();
}
}
);
/* wallboard aufrufen */
timer.append(
function()
{
if (jQuery('.js-projects-list-holder').length > 0)
{
window.location.href = window.gitlabUrl + '/dashboard/issues?state=opened&utf8=✓&assignee_id=0';
}
}
);
/* reload verhalten */
timer.append(
function()
{
if (jQuery('.issues-filters').length > 0)
{
window.location.href = window.gitlabUrl + '/dashboard/issues?state=opened&utf8=✓&assignee_id=0';
}
}
);
Тепер ви можете вийти з системи. Будь ласка, змініть налаштування DisplayManager у файлі “/etc/default/nodm”. Тут необхідно змінити “NODM_USER” на “dashboard” та “NODM_ENABLED” на “true”.
# nodm configuration
# Set NODM_ENABLED to something different than 'false' to enable nodm
NODM_ENABLED=true
# User to autologin for
NODM_USER=dashboard
# First vt to try when looking for free VTs
NODM_FIRST_VT=7
# X session
NODM_XSESSION=/etc/X11/Xsession
# Options for nodm itself
NODM_OPTIONS=
# Options for the X server.
#
# Format: [/usr/bin/<Xserver>] [:<disp>] <Xserver-options>
#
# The Xserver executable and the display name can be omitted, but should
# be placed in front, if nodm's defaults shall be overridden.
NODM_X_OPTIONS='-nolisten tcp'
# If an X session will run for less than this time in seconds, nodm will wait an
# increasing bit of time before restarting the session
NODM_MIN_SESSION_TIME=60
# Timeout (in seconds) to wait for X to be ready to accept connections. If X is
# not ready before this timeout, it is killed and restarted.
NODM_X_TIMEOUT=300

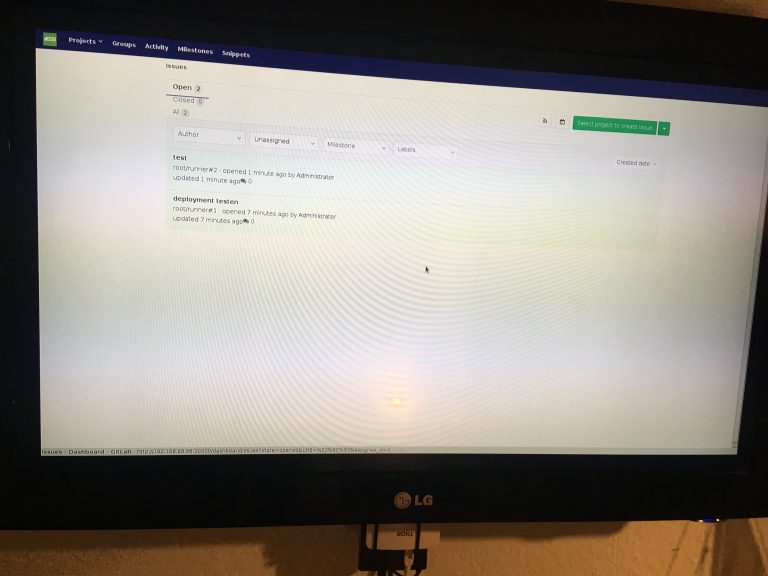

Якщо ви зараз перезавантажитеся за допомогою “sudo reboot”, ви побачите наступну інформаційну панель:
