Herr Knedel/Cool stuff with Atlassian: Pimp my Bamboo monitor

How to create a build monitor for Bamboo, Jenkins or Gitlab? I’ll figure it out by tonight! I have already written a similar Tutorial for Gitlab Issue Boards.

Step 1: Install Matchbox/Window Manager

To run a Raspberry in kiosk mode, a window manager and a browser are needed. These are installed with the following command:

Step 2: I create a dashboard user

With the following command I create a new user named “dashboard”:

Step 3: Configuration xServer and Window Manager

All the following steps must be done in the “dashboard” user session. With “su” I change into the session:

3.1. ) Keys/Function

My Raspberry should also be operable in kiosk mode. For this I store two key commands, Ctrl Alt X for terminal and Alt C to close the terminal. In the terminal you can query the current IP with ifconfig, shutdown the Raspberry with sudo shutdown -h now etc…..

##  Window operation short cuts
<Alt>c=close
<ctrl><alt>x=!xterm

3.2. ) X - Session

Also the following lines must be entered in a file “$ vim ~/.xsession”. This script checks if the dashboard is reachable. If it is not reachable, it waits 10 seconds. Of course the address/IP has to be adjusted.

xset -dpms
xset s off

while ! curl -s -o /dev/null https://192.168.178.61:8085/ sleep 10
done
exec matchbox-window-manager -use_titlebar no & while true; do

    uzbl -u https://192.168.178.61:8085/telemetry.action -c /home/pi/uzbl.conf
done

It is very important that the script is executable:

3.3. ) Interface co-configuration

The following lines configure the web interface. The browser is maximized and the status bar is hidden.

set socket_dir=/tmp
set geometry=maximized
set show_status=0
set on_event = request ON_EVENT
set show_status=0

@on_event LOAD_FINISH script ~/dashboard/verhalten.js

3.4.) Ready

The “dashboard” session can be exited:

3.5.) behave.js and scrolling text

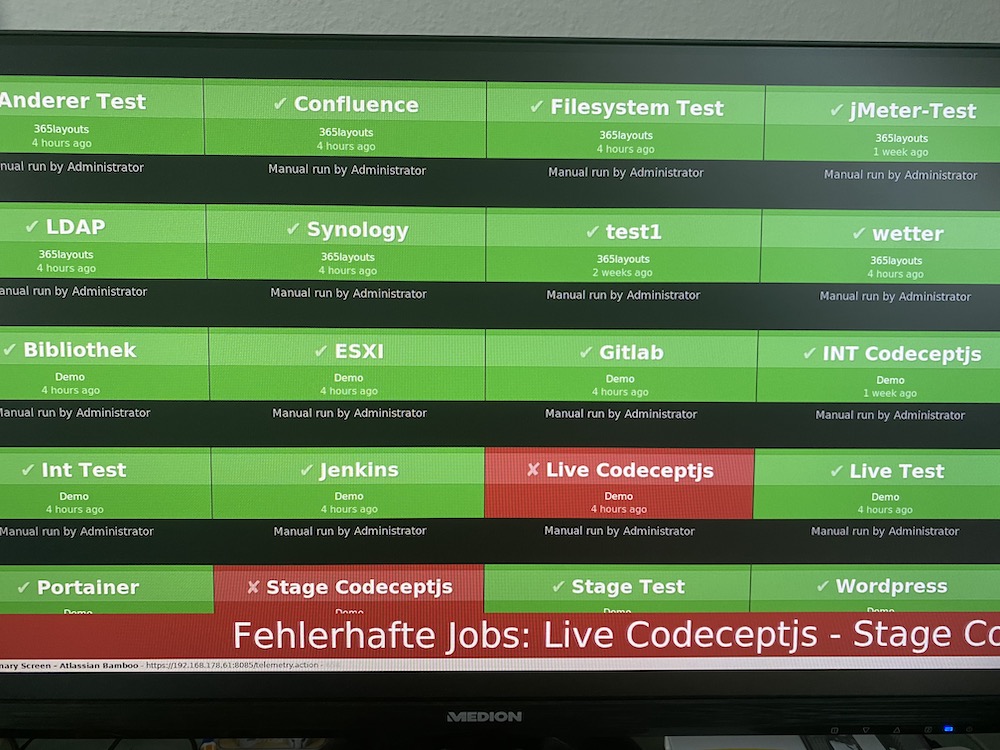

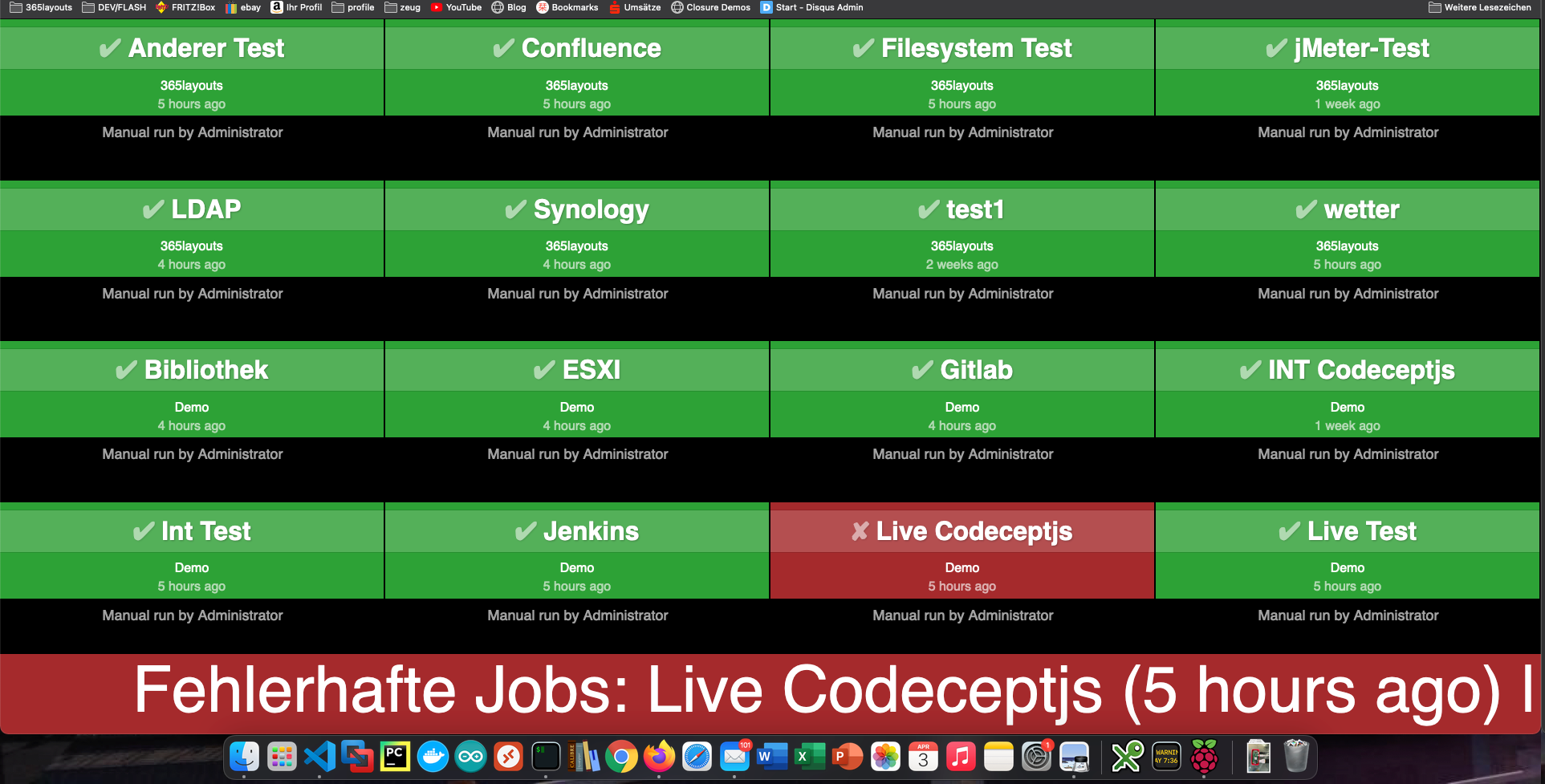

This javascript is used to control the board behavior. If build or test fails, a big ticker is shown. So I can see errors even from a distance.

var bamboobUrl = 'https://ip:port';
var bambooUser = 'nutzer';
var bambooPassword = 'password';
var ticker = jQuery('<marquee direction="left" scrollamount="5" scrolldelay="2" style="display:none;background:#962526;position:fixed;bottom:0;left:0;width:100%;line-height:100px;font-size:80px;"></marquee>');

/*--------------------------Timer--------------------------*/

var Timer = function(intervallInMsec)
{
  this.caller = new Array();
  this.intervall = window.setInterval(
    this.call.bind(this),
    intervallInMsec
  );
};

Timer.prototype.append = function(callFunction)
{
  this.caller.push(callFunction);
};

Timer.prototype.remove = function(callFunction)
{
  var index = this.caller.indexOf(callFunction);
  if (index > -1)
  {
    this.caller.splice(index, 1);
  }
};

Timer.prototype.call = function()
{
  for(
    var callerIndex = 0, callerLenght = this.caller.length;
    callerIndex < callerLenght;
    callerIndex++
  ) {
    this.caller[ callerIndex ].call();
  }
};

var timer = new Timer(10000);
jQuery('body').append(ticker);

/* login verhalten */
timer.append(
  function()
  {
    if (jQuery('#loginForm_os_username').length > 0)
    {
      jQuery('#loginForm_os_username').val(bambooUser);
      jQuery('#loginForm_os_password').val(bambooPassword);
      jQuery('#loginForm_save').click();
    }
    else if (jQuery('.aui-dropdown2-trigger-group').length > 0)
    {
      window.location.href = window.gitlabUrl + '/telemetry.action';
    }
  }
);

/* roter ticker */
timer.append(
  function()
  {
    if (jQuery('.Failed').length > 0)
    {
      var failedJobs = new Array();

      jQuery.each(
        jQuery('.Failed'),
        function() {
          failedJobs.push( jQuery(this).children('.plan-name').text() + ' (' + jQuery(this).find('time').text() + ')');
        }
      );
      var text = 'Fehlerhafte Jobs: ' + failedJobs.join(' | ');
      if( jQuery(ticker).text() !== text)
      {
          jQuery(ticker).html('<span>' + text + '</span>');
          jQuery(ticker).show();
      }

    }
    else
    {
        jQuery(ticker).hide();
    }
  }
);

Of course, you can include any behavior you want, such as restarting failed tests.

4. autologin into the X-session

The next step is to set the automatic login. For this purpose this file is adapted:

# nodm configuration
# Set NODM_ENABLED to something different than 'false' to enable nodm
NODM_ENABLED=true # <-- hier muss true hin

# User to autologin for
NODM_USER=dashboard # <-- hier muss dashboard hin

# First vt to try when looking for free VTs
NODM_FIRST_VT=7
# X session
NODM_XSESSION=/etc/X11/Xsession
# Options for the X server
NODM_X_OPTIONS='-nolisten tcp'
... usw

After that, the system can be rebooted.

Ready

Each dasboard should be restarted once a day. I have created a cron for this.
