Herr Knedel/Great things with containers: Installing your own MediaWiki on Synology Diskstation

Created Fri, 16 Apr 2021 00:00:00 +0000 Modified Mon, 28 Mar 2022 18:09:54 +0000 Difficulty level: Can be done by anyone

540 Words

MediaWiki is a PHP-based wiki system that is available for free as an open source product. Today I show how to install a MediaWiki service on the Synology disk station.

Option for professionals

Of course, as an experienced Synology user, you can log in right away with SSH and install the whole setup via Docker Compose file.

version: '3'
services:
  mediawiki:
    image: mediawiki
    restart: always
    ports:
      - 8081:80
    links:
      - database
    volumes:
      - ./images:/var/www/html/images
      # After initial setup, download LocalSettings.php to the same directory as
      # this yaml and uncomment the following line and use compose to restart
      # the mediawiki service
      # - ./LocalSettings.php:/var/www/html/LocalSettings.php

  database:
    image: mariadb
    restart: always
    volumes:
       - ./mysql:/var/lib/mysql
    environment:
      # @see https://phabricator.wikimedia.org/source/mediawiki/browse/master/includes/DefaultSettings.php
      MYSQL_ROOT_PASSWORD: my_wiki_pass1
      MYSQL_DATABASE: my_wiki
      MYSQL_USER: wikiuser
      MYSQL_PASSWORD: my_wiki_pass

More useful Docker images for home use can be found in the Dockerverse.

Step 1: Prepare MediaWiki folder

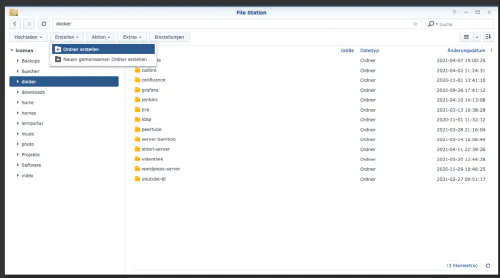

I create a new directory named “wiki” in the Docker directory.

Step 2: Install database

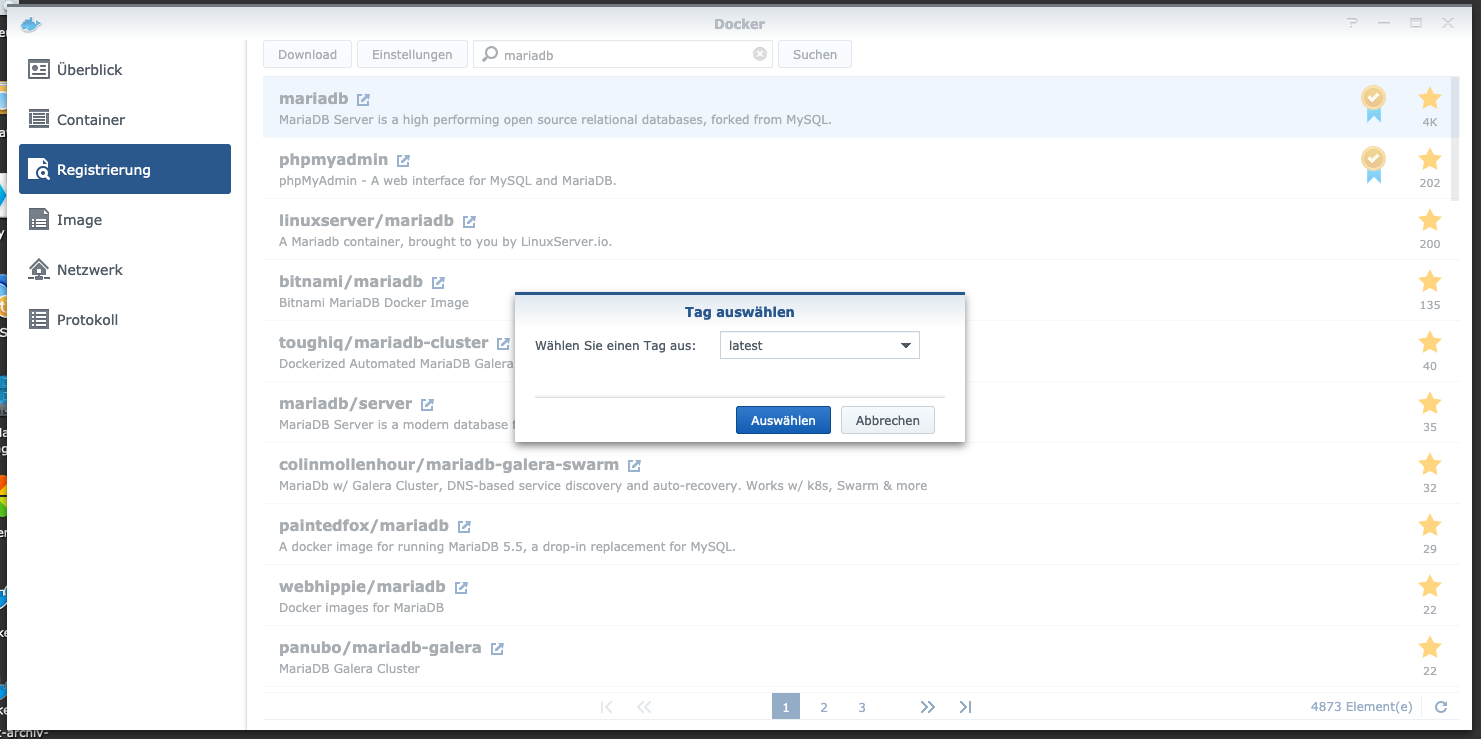

After that, a database needs to be created. I click on the “Registration” tab in the Synology Docker window and search for “mariadb”. I select the Docker image “mariadb” and then click on the tag “latest”.

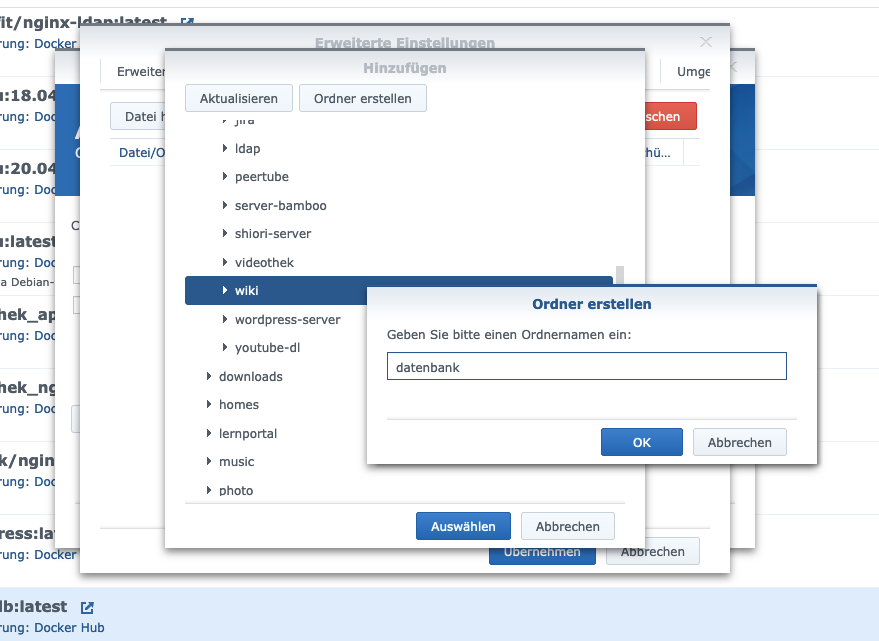

After the image download, the image is available as an image. Docker distinguishes between 2 states, container “dynamic state” and image (fixed state). Before we now create a container from the image, a few settings must be made.I double-click on my mariadb image. After that I click on “Advanced settings” and activate the “Automatic restart”. I select the “Volume” tab and click on “Add Folder”. There I create a new database folder with this mount path “/var/lib/mysql”. Under “Port Settings” all ports are deleted. This means that I select the “3306” port and delete it with the “-” button.
Variable name Value What is it?
TZ Europe/Berlin Time zone
MYSQL_ROOT_PASSWORD my_wiki_pass Master password of the database.
MYSQL_DATABASE my_wiki This is the database name.
MYSQL_USER wikiuser User name of the wiki database.
MYSQL_PASSWORD my_wiki_pass Password of the wiki database user.
Finally, I enter these environment variables:See: After these settings Mariadb server can be started! I press “Apply” everywhere.

Step 3: Install MediaWiki

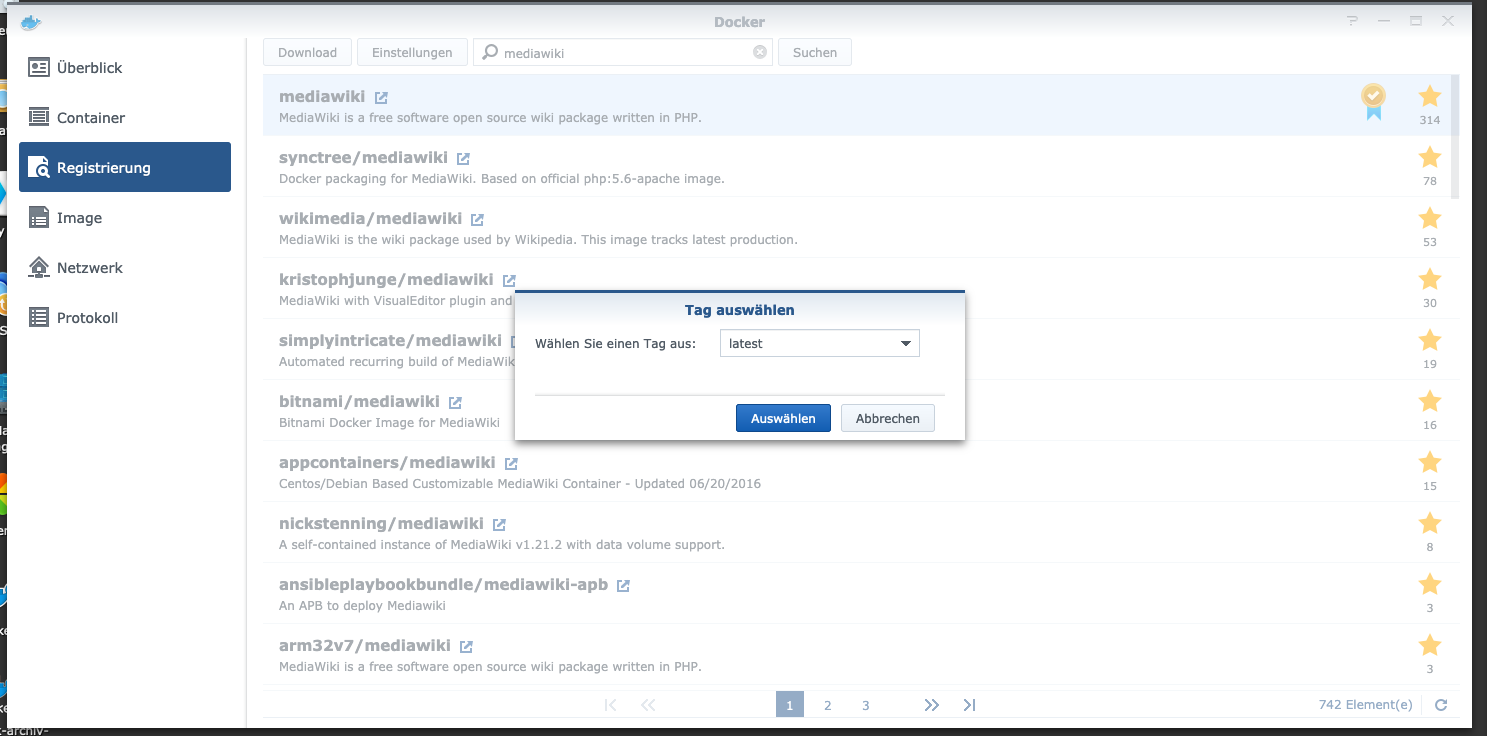

I click on the “Registration” tab in the Synology Docker window and search for “mediawiki”. I select the Docker image “mediawiki” and then click on the tag “latest”.

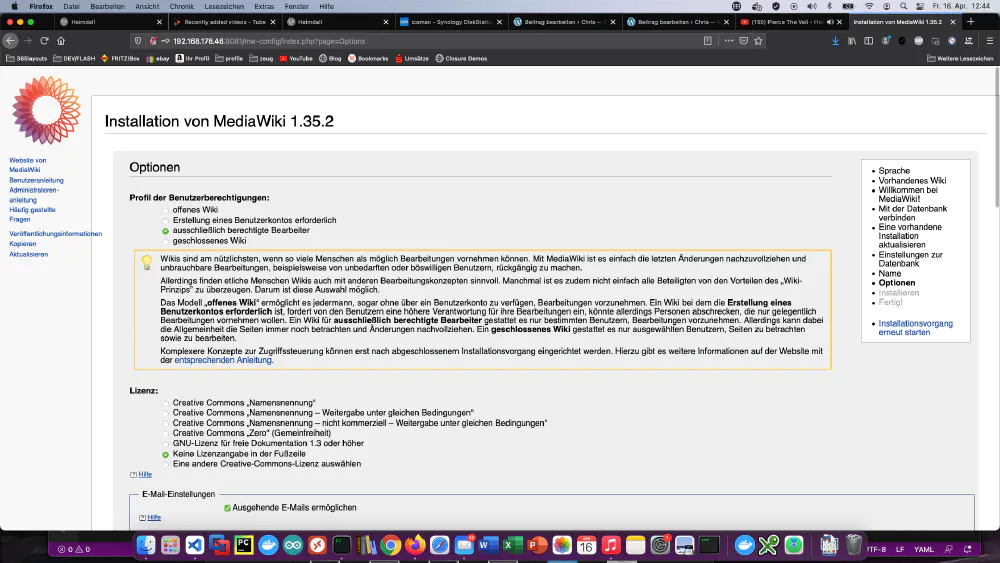

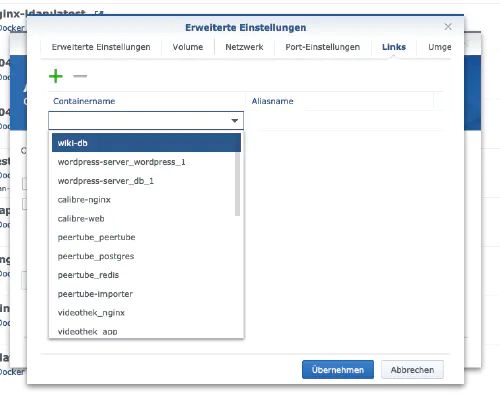

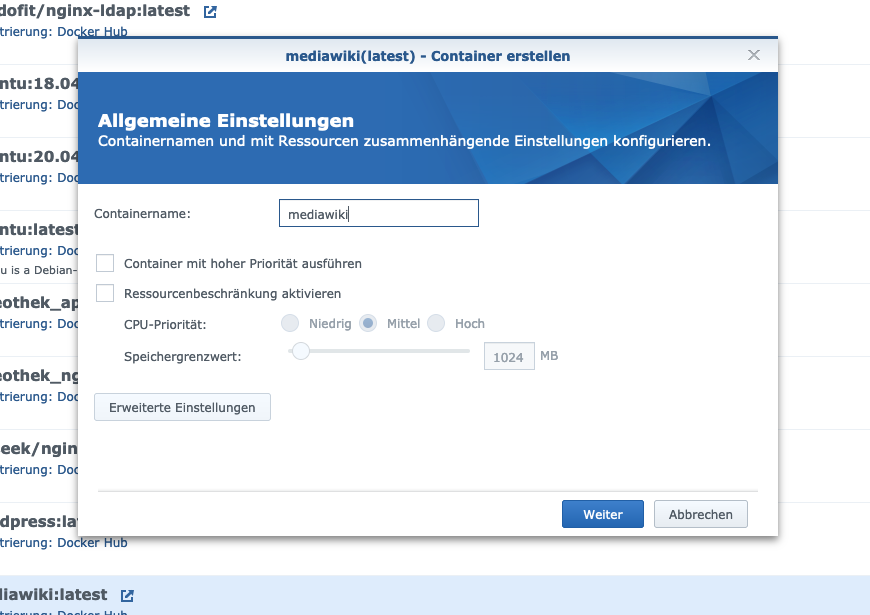

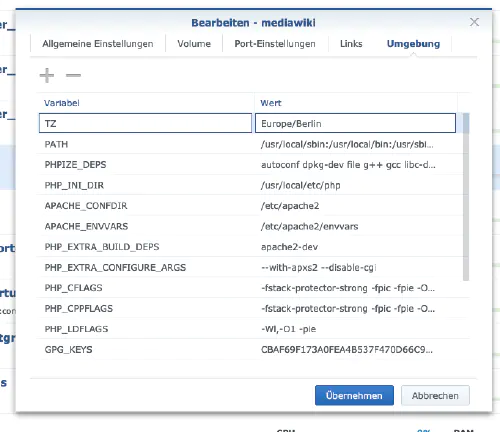

I double-click on my Mediawiki image. After that I click on “Advanced settings” and activate the “Automatic restart” here as well. I select the “Volume” tab and click on “Add Folder”. There I create a new folder with this mount path “/var/www/html/images”. I assign fixed ports for the “MediaWiki” container. Without fixed ports it could be that the “MediaWiki server” runs on another port after a restart. Also, a “link” to the “mariadb” container still needs to be created. I click on the “Links” tab and select the database container. The alias name should be remembered well for the wiki installation. Finally, I enter an environment variable “TZ” with value “Europe/Berlin”. The container can now be started. I call the Mediawiki server with the Synology IP address and my container port. At Database server I enter the alias name of the database container. I also enter the database name, user name and the password from “Step 2”.
